PLC Program for Start Stop condition using one Push button

Using PLC Ladder Program start and Stop using single input from Input Port or HMI button.

Using Input Port Push Button switch Start/Stop ladder plc program

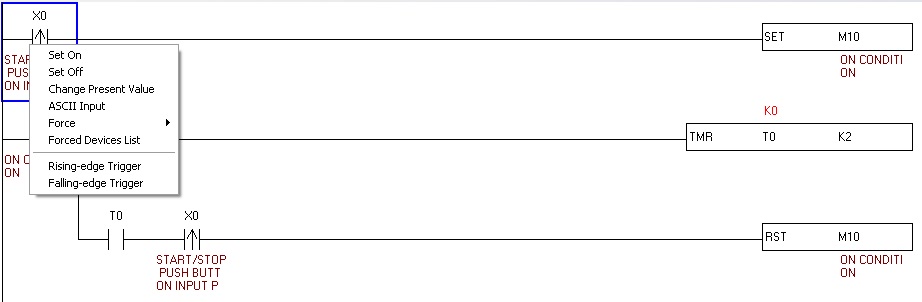

Set by pressing Push button X0 input of PLC port

See internal relay(M10) getting On condition from we can use this internal register any of PLC output or machine operation as Start of process.

Again we push same button then it get OFF.
